Internal Dimensions L: 743 x W: 483 x D: 178mm
Internal Dimensions
| Length mm | 743 |
| Width mm | 483 |
| Depth mm | 178 |
External Dimensions
| Length mm | 1067 |
| Width mm | 680 |
| Depth mm | 413 |
Depth
| Lid mm | 114 |
Weight (kg)
| Overall Weight | 27.87 |
Rack Sizes
| Space Units Total | 4U |
| Rackable Depth | 29.25 |
| Rack Depth Rail To Rail | 29.25 |
| Depth Front Rail To Back Lid | 33.75 |

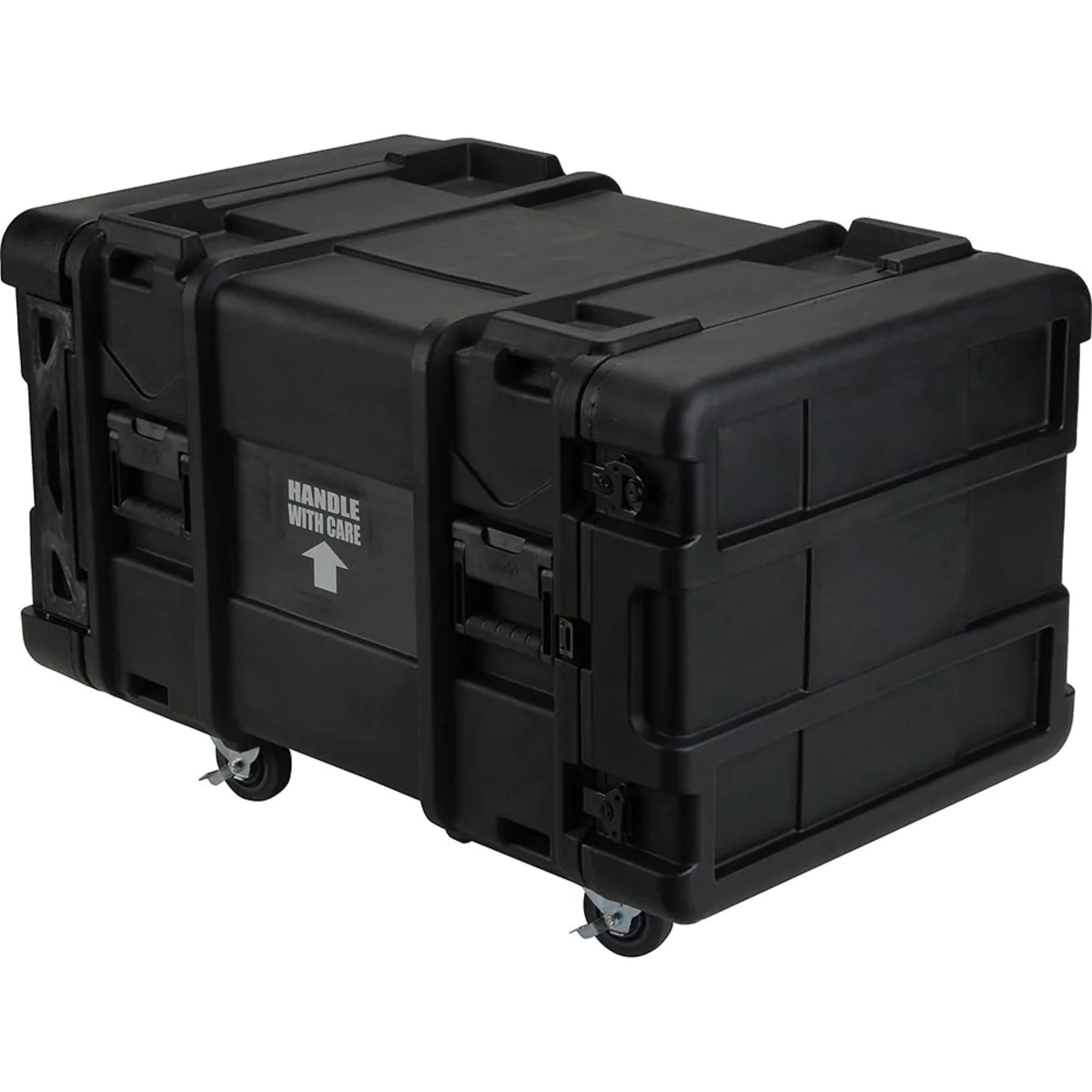

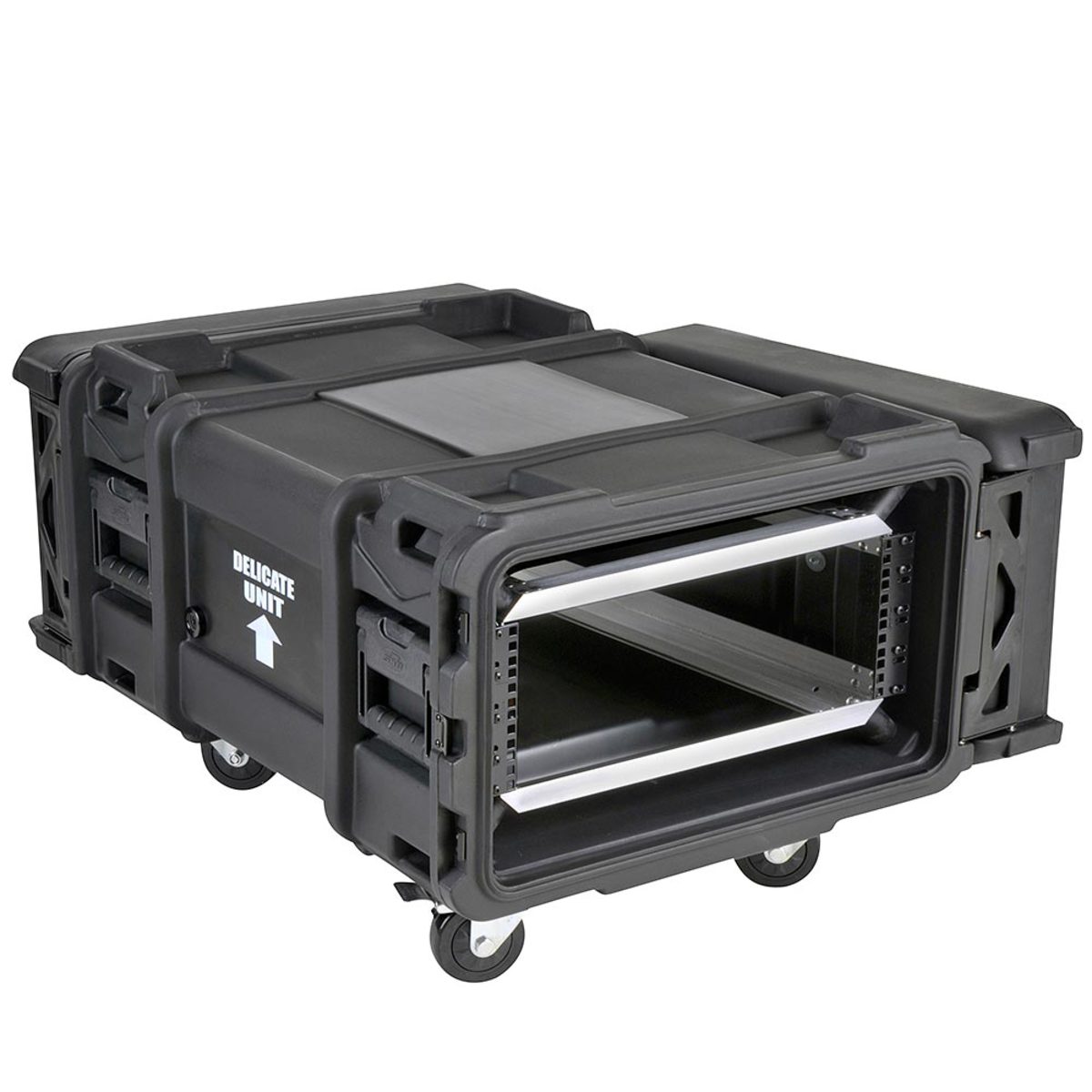

3SKB-R904U28 4U Portable Rackmount Case 28″ (710m) Deep Rail To Rail
SKB 28 inch Heavy Duty Shockrack systems include a revolutionary new patented Adjustable Rail Conversion System. This ARCS technology allows the user to adjust the rack width up to 0.5 inches on each side and optional easy-mount adapter rails will convert the equipment mounting standard from 3/16″ threaded to 7/32″ through holes or square cage nut windows. The 7/32″ through hole option and the 3/16″ threaded are special order items. Accommodates Dell and Compaq servers utilizing “Versa-rail” or “Rapid-rail” pull-out systems.

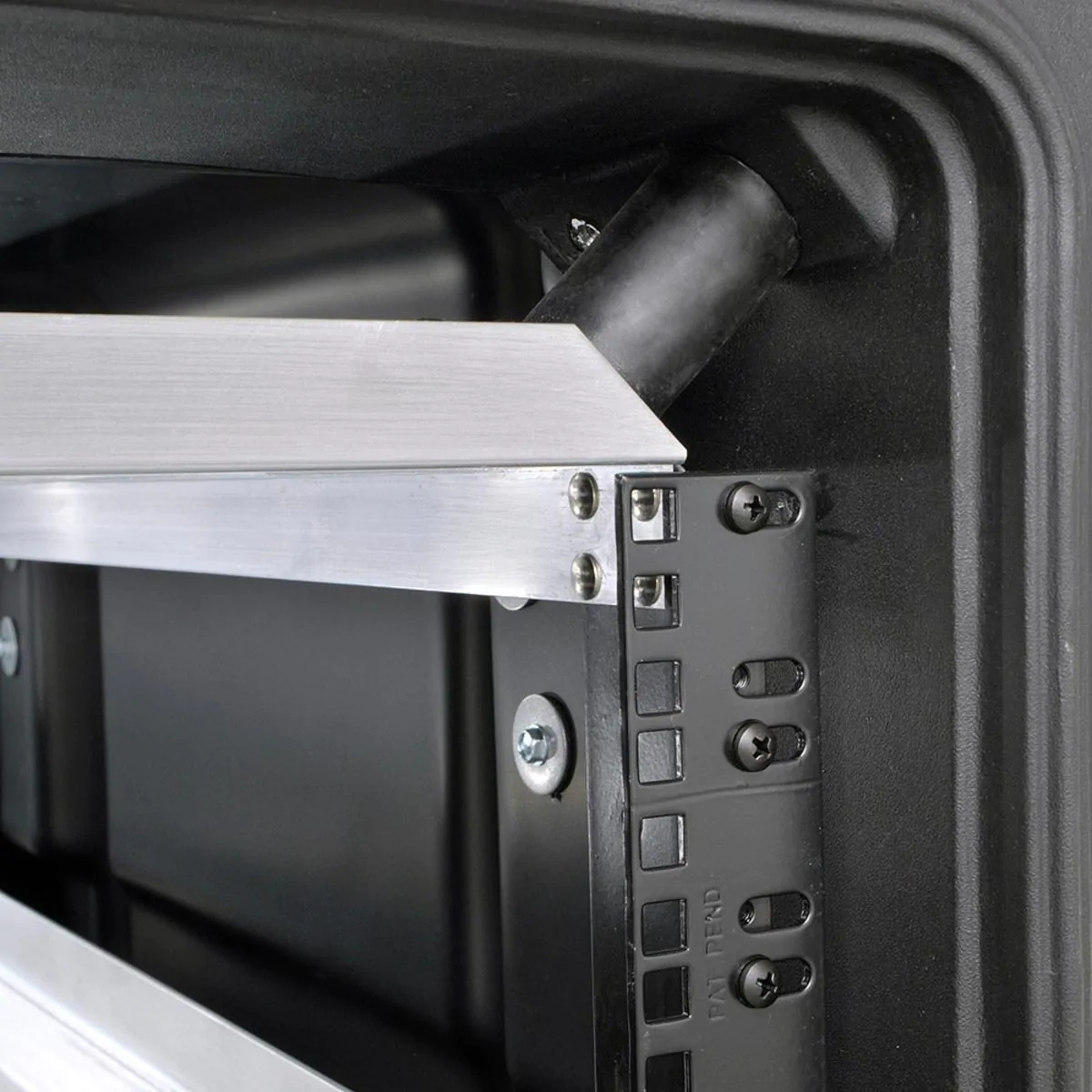

Square hole rack rails allow the use of replaceable 10-32 screw size cage nuts. Cage nuts and mounting screws are included and (6mm )metric cage nuts and mounting screws are available as a special order)..
This case has all of the same great features as the 24″ deep Roto Shock Series. Standard features include: (patent pending) compound hinged doors, black powder coated stainless steel latches, removable 4″ casters. The inner rack chassis is built of high strength / lightweight aluminium alloy and 11 gauge hot rolled carbon steel rack rails to DIA-310 standards. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 lbs. to 150 lbs. in a standard configuration and up to 300 pounds in a special order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation with black powder coated stainless steel latches, gasketed doors and pressure relief valve.
