Internal Dimensions L: 565 x W: 483 x D: 178mm
Internal Dimensions
| Length mm | 565 |
| Width mm | 483 |
| Depth mm | 178 |
External Dimensions
| Length mm | 724 |
| Width mm | 711 |
| Depth mm | 406 |
Weight (kg)
| Overall Weight | 20.07 |
Rack Sizes
| Space Units Total | 4U |
| Rackable Depth | 20 |
| Rack Depth Rail To Rail | 20 |
| Depth Front Rail To Back Lid | 22.25 |
SKB 3SKB-R04U20W

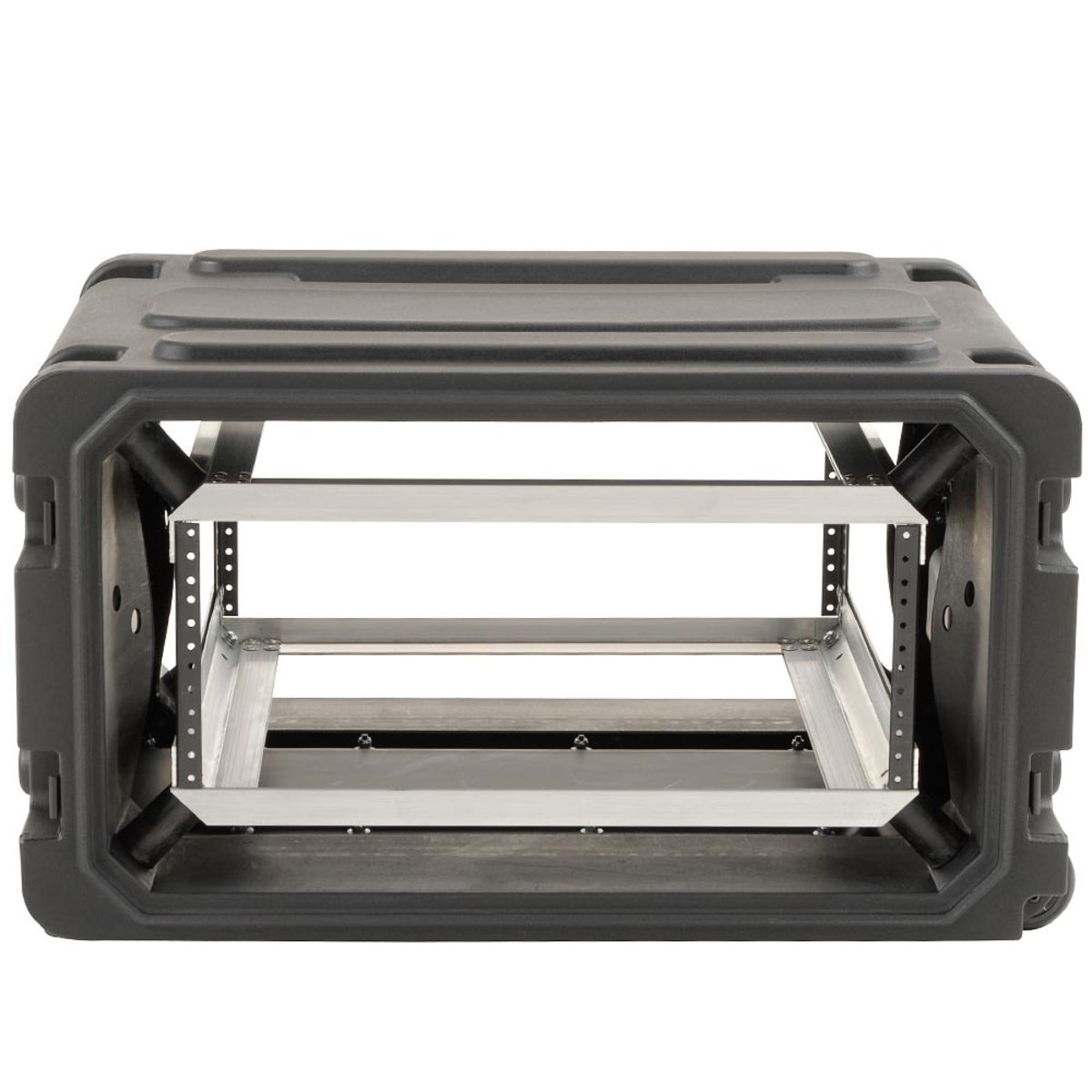

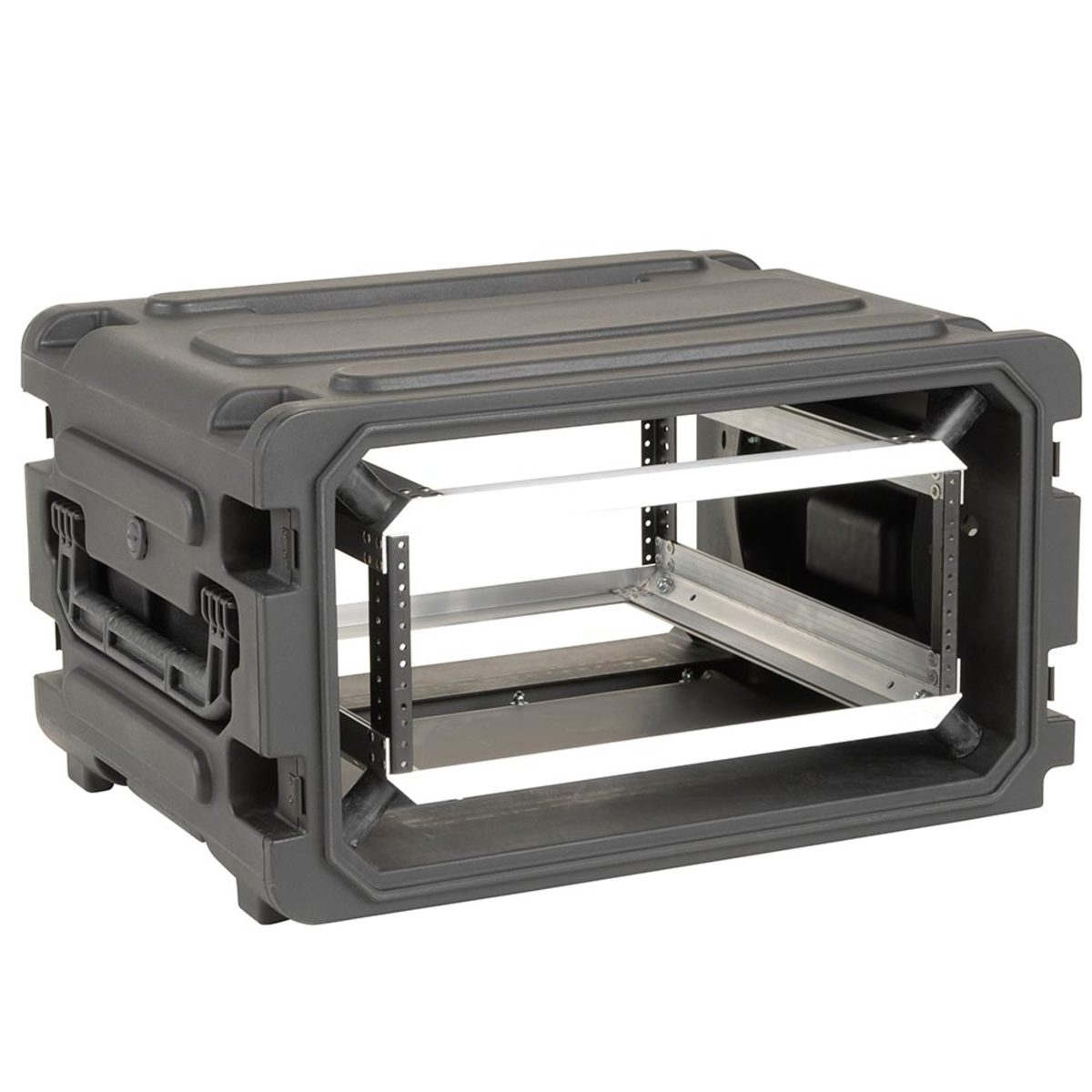

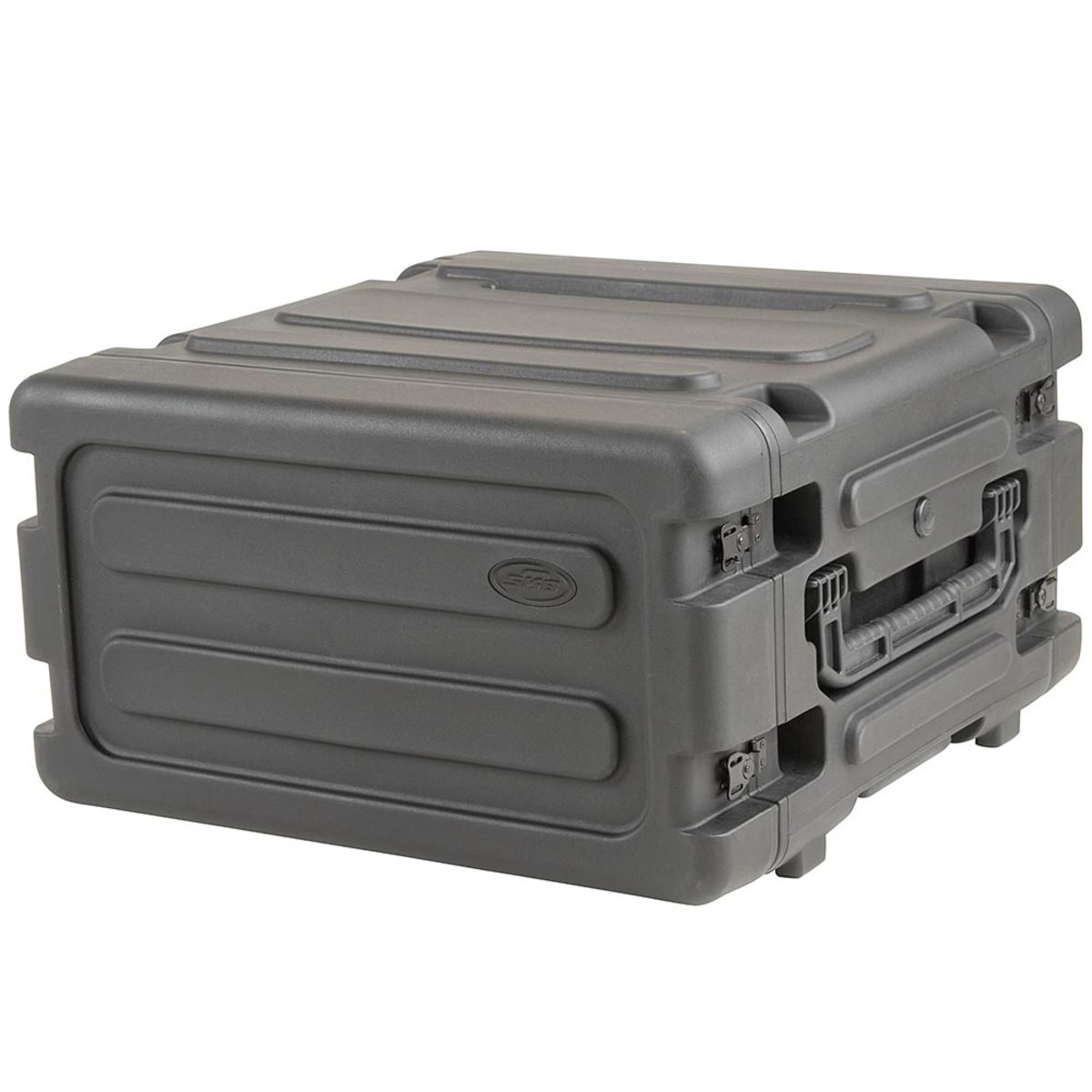

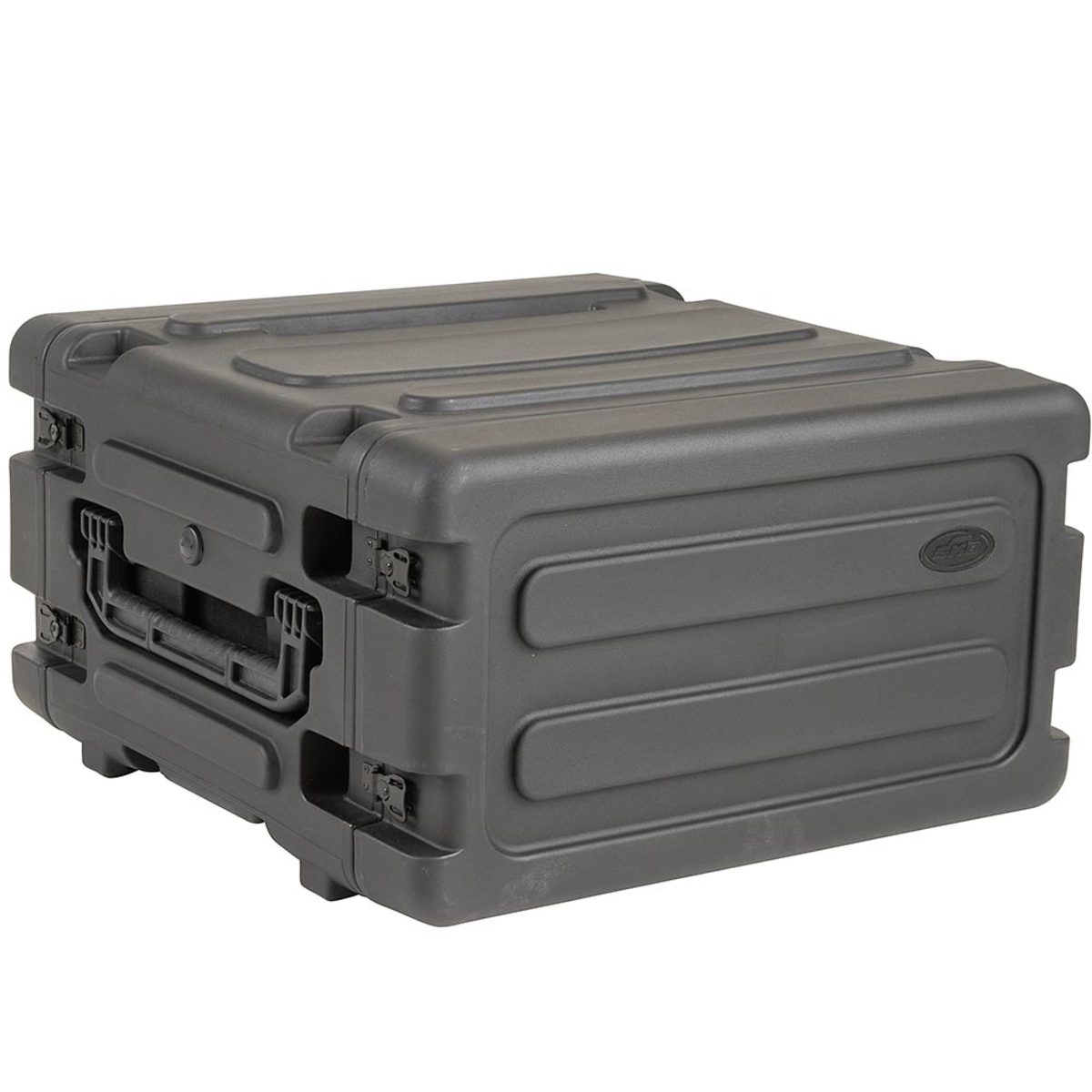

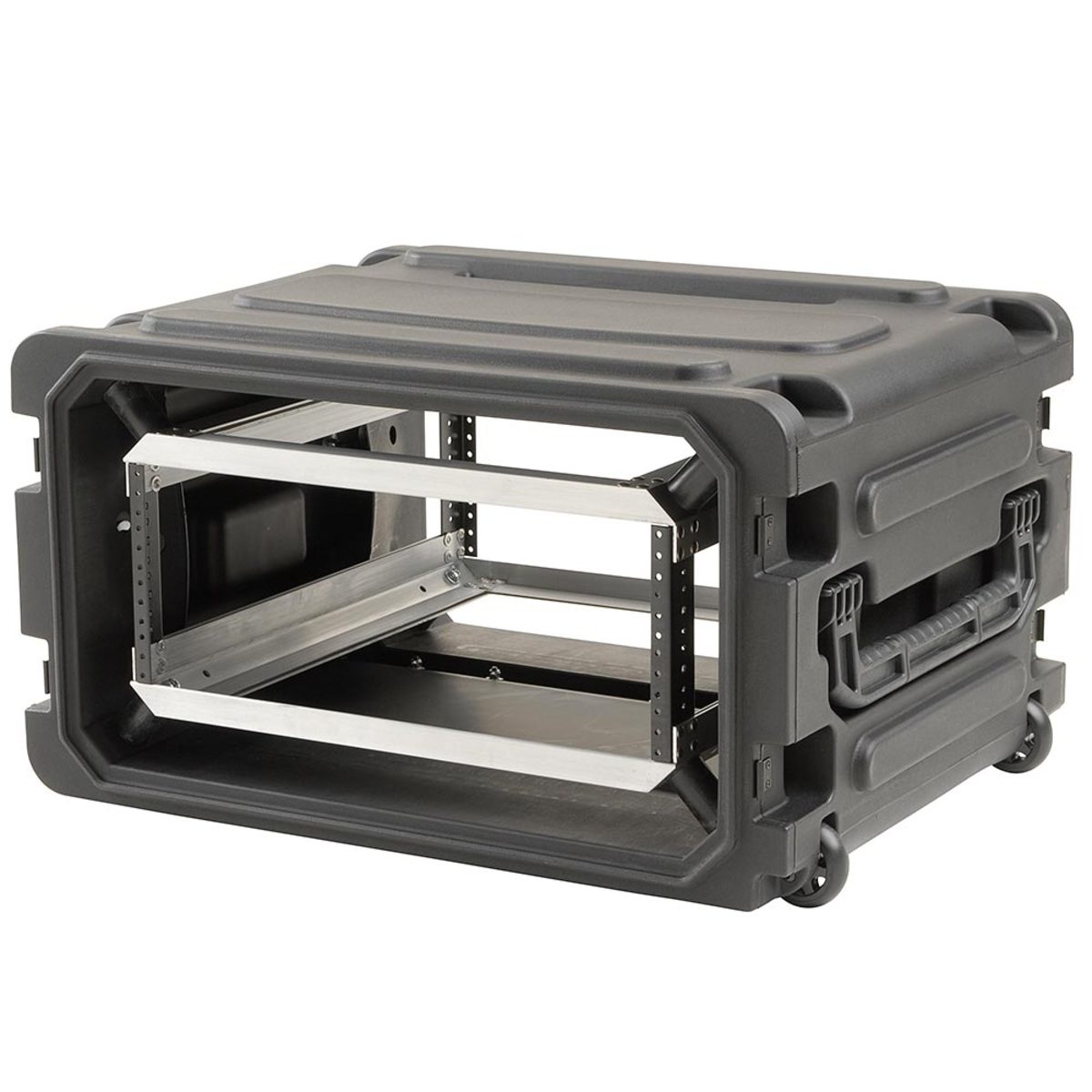

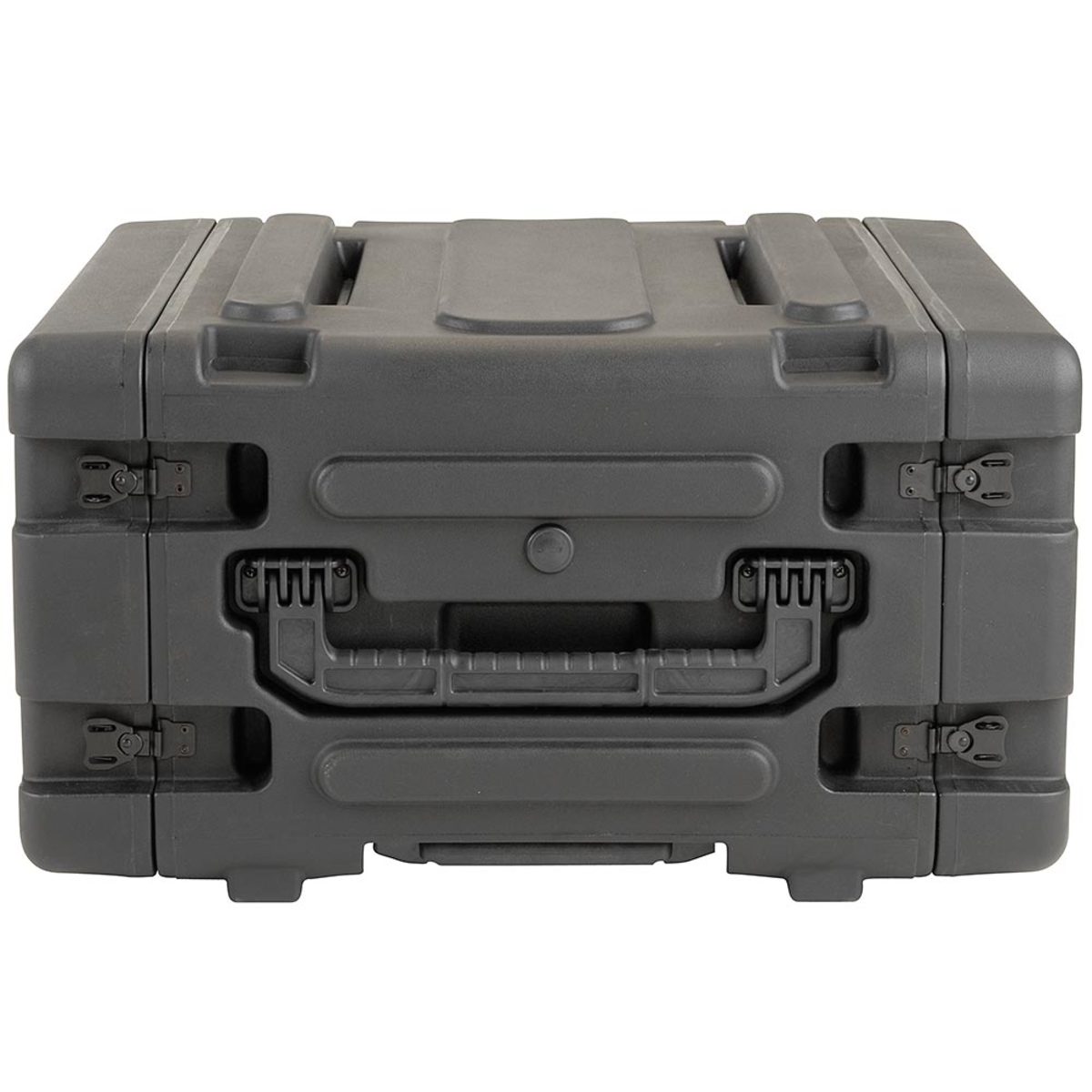

4U Roto Shockmount Rolling Rack
20″ (51cm) Rail To Rail
The Rolling Shockmount Case series incorporates our black powder coated twist latches with locking loops and low profile injection molded pull handle with a 20 inch deep tough shell. The molded design provides extra stiffness in the lids and sides and allows for secure stacking.
Rack depth of the 3SKB-R04U20W from front to rear rail is 20 inches (51cm) and each lid is 2-1/4 inches deep. Rack rails are pre-threaded for standard 10-32 hardware and the mounting screws are included. Doors are fully usable even when racks are stacked together. Elastomeric shocks protect even the heaviest of loads. Sliding retractable handle, ambient pressure relief valve, oversized snap-down handles on each side, roller blade wheels, and gasket protected front and rear doors are all standard equipment.
This design also makes for enough “sway” space around the internal frame for an optimized air circulation and heat dissipation—very important when your delicate equipment is mounted and running. With our 1SKB Rolling Shock Racks you also save big on weight versus traditional flight cases and wooden cases.
The integrated wheels and pull handle make for easy lifting and transport. These models well accommodate audio mixers, video recording devices and communication equipment such as routers, switches, etc.
Typical applications are in broadcast, music, pro audio, outdoor events and many more markets.
